Automatic Electric Control System Divider Curtain with High Strength Fabric and Customizable Color for Indoor Sports

Automatic Electric Control System Divider Curtain with High Strength Fabric and Customizable Color for Indoor Sports

اسم العلامة التجارية: Flyon
رقم الطراز: تقسيم الستار
الـ MOQ: 50 متر مربع
السعر: 46-98 dollars per sqm
شروط الدفع: / تي تي، ويسترن يونيون
القدرة على التوريد: > = 50000 متر مربع/شهر
معلومات مفصلة
مكان المنشأ:
الصين
إصدار الشهادات:
SGS/GB-8624 (B2 level)
مادة:
PVC/ نسيج قوة عالية
لون:
حسب الطلب
نمط:
قابلة للتخصيص
الأداء البيئي:
GB-18586
تفاصيل التغليف:
الحزمة القياسية
مقاومة المسيل للدموع:
GB/T 3917.3-2009
تفاصيل التغليف:
صناديق خشبية
القدرة على العرض:
> = 50000 متر مربع/شهر
إبراز:

Electric Control System Divider Curtain,High Strength Fabric Partition Curtain,Customizable Color Dividing Curtain

,

High Strength Fabric Partition Curtain

,

Customizable Color Dividing Curtain

وصف المنتج
Automatic Electric Control System Divider Curtain with High Strength Fabric and Customizable Color for Indoor Sports
Special discounts available for new and existing customers. Contact us for specific pricing.
Single Curtain System Specifications
Product Name Divider Curtain Total Hanging Weight ≤ 2.5 kg/m
Maximum Height 12m Hanging Spacing ≤ 3m
Maximum Width 36m Maximum Bearing Capacity (per lifting point) ≤ 80kg
Maximum Area 300m² Maximum Hanging Weight ≤ 750kg
Color Options
Automatic Electric Control System Divider Curtain with High Strength Fabric and Customizable Color for Indoor Sports 0 Automatic Electric Control System Divider Curtain with High Strength Fabric and Customizable Color for Indoor Sports 1
Available Models
Automatic Electric Control System Divider Curtain with High Strength Fabric and Customizable Color for Indoor Sports 2
Installation Requirements
• A safety gap of at least 50 cm should be reserved between this partition curtain system and the adjacent partition curtain or wall.
• A safety clearance of at least 15 cm should be left on the side without motor drive system.
• At least 5cm ground clearance shall be reserved between the bottom of the partition curtain and the ground.
Electric and Control System
High-performance drum motor (220V, 450W, 120N/m) with internal planetary gear reducer
Integrated up and down brake limiter with push-button limit switch
Automatic reset and thermal overload protection system
Operation is stable and reliable with components integrated into middle coiling drum
Product Advantages
Double curtains made of high-quality PVC for superior sound absorption
Partial mesh design allows natural light transmission
Complete system includes all required materials, parts, and aluminum truss load-bearing structure
Environmentally friendly, tear-resistant, high strength, and fireproof materials
Easy to use system available in various customization options

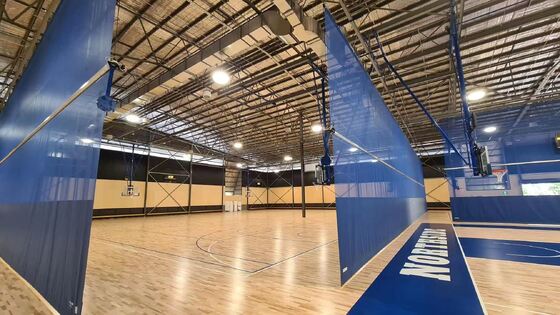

Project Gallery
Automatic Electric Control System Divider Curtain with High Strength Fabric and Customizable Color for Indoor Sports 3 Automatic Electric Control System Divider Curtain with High Strength Fabric and Customizable Color for Indoor Sports 4
